Compression Tension Load cell

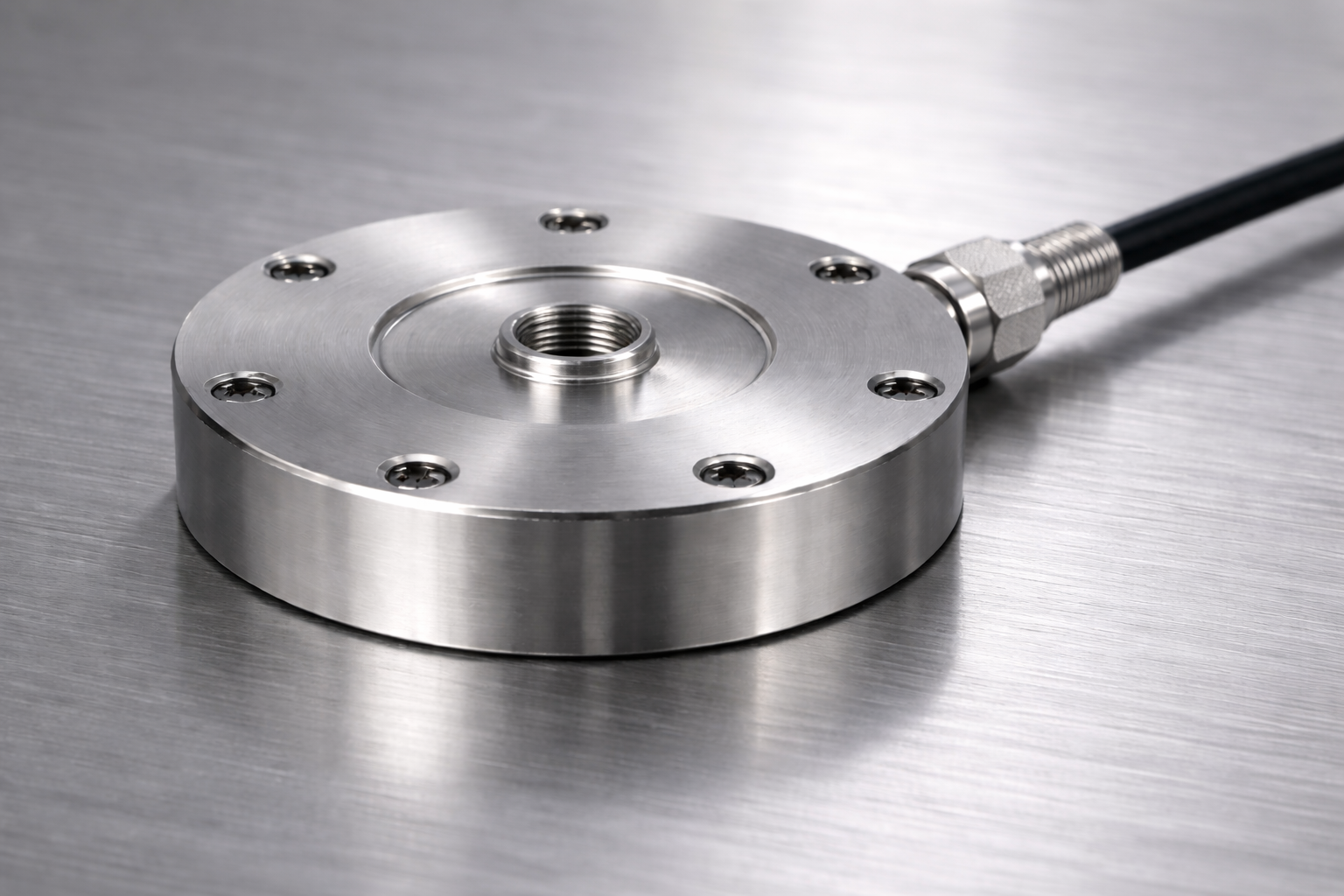

Pancake type compression tension Load cell can be fixed in any system where tension and Compression forces are to be measures. We manufacture these high quality load cells in many types and sizes. Both high accuracy type and low accuracy type load cells are available in pancake type.
The Load cell is mounted from the holed on the outer part and the middle threaded or unthreaded part is load point.
- Truck / Rail Scales
- Silo / Hopper / Tank weighing
- Universal Material Tester
- Tensile / Pulling force
Technical Specifications are given below:
PARAMETER VALUE UNIT
Rated Output-R.o. 2.0 mV/V
Rated Output Tolerance 1.0 mV/V
Zero balance 1 mV/V
Non Linearity 0.015 +/- % RO
Zero Return ( 20 minutes) 0.030 % of applied Load
Temp. Effect On min. Dead Load Output 0.0026 % of Applied Load/C
Temperature effect on Sensivity 0.0015 % of Applied Load/C
Temperature Range, Compensated -10 to +40 Degree Celsius
Operating Temperature Range -20 to +60 Degree Celsius
Maximum Safe Overload 150 % of R.C.
Ultimate Overload 200 % of R.C.
Excitation, recommended 10 Vdc or Vac rms
Excitation, maximum 15 Vdc or Vac rms
Input Impedance 770 +/- 10 ohms
Output impedance 700 +/- 5 ohms
Insulation Resistance >5000 mega-ohms
Construction Anodised Alloy Steel
Environmental protection IP 67
