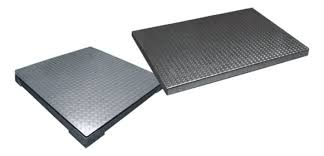

Heavy Duty Platform Scale


Model : XR

We have complete range of Heavy duty Platform scale for industrial and other applications. Custom made sizes are also available as per customer requirement.

We manufacture Heavy duty Platform scales under GODSUN brand. Ideal for use under conditions where heavy duty platforms are required to weight the commodities. Warehouses, heavy industries and anywhere where heavy loads are need to be weighed, our heavy duty platform scales are ideal. Larger platform sizes are built using 4/6 load cells to give strength and load bearing capacity to the structure while keeping the dead weight of the structure at lowest possible. Dormant type heavy duty platform scale (scales which are mounted in a pit and are permanently installed and the weighing platform is at ground level) for trolley and other similar weighing requirements are also made as per requirement.

Heavy duty platform

   Capacity             Accuracy             Platform Size

 500kg                      50g                      800x800mm

1000kg                      100g                    800x800mm

   1000kg                      100g                    1000x1000mm

   1500kg                      200g                    1200x1200mm

   2000kg                      200g                    1500x1500mm

   5000kg                      500g                    1500x1500mm

Technical Specifications:

  • Cabinet: Robust Powder Coated MS/ Die Molded ABS cabinets Available for Indicator
  • Load cell: Very high precision load cell
  • Single Load cell or Four load cell options available
  • Protection:Over load protection mechanism
  • Display: Seven Segment Red LED Display.
  • Second Display (Optional): Wired (5mtr), Wireless
  • Modes: Kg/ Ltr
  • Connectivity (Optional): RS 232 Serial port / Bluetooth/ RS-422/ RS-485
  • Power Source: Inbuilt Rechargeable battery backup / 220V AC/50Hz
  • 24 Bit Sigma Delta ADC
  • Micro controller Based
  • Auto stand by mode to save battery power.
  • Solar powered models also available
  • Piece counting function.
  • Liter mode programming and conversion through Bluetooth from Smartphone available (Optional)
