High Accuracy Compression Load Cell

Model: BCLH is a high accuracy compression load cell to provide low profile solution for high capacity and high accuracy requirements. The design provides good restraint for possible movement and eliminates the need for check rods. The design gives excellent performance for high capacity loading.

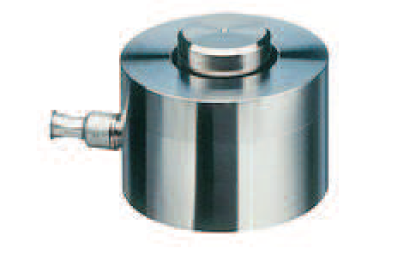

high Accuracy Compression

Made of High grade SS and is fully protected with special chemical compounds to IP67 Standards providing excellent protection against moisture and humidity.

  • Ideally suited for tank, hopper, silo weighing and accurate process weighing applications.
  • Simple in design meeting IP-67/68 standards.
  • Special screened / FRLS cable used.

Salient Features:-

  1. Easy to install in limited space
  2. Modular design for easy maintenance
  3. Lift-off protection
  4. Wide temperature range
  5. Resistant against vibration
  6. Simplified installation.
  7. High grade stainless steel construction.

Technical Specifications:-

Capacities(kg): 500,1000,1500,2500,3000,5000,10000,15000,20000,30000,50000,75000,100000

Output: 2mv/V or 3mv/V or 4mv/V +/-0.25%

Static Error Band: </=0.03% FSO

Non Linearity: </=0.01 % FSO

Hysteresis: </= 0.02 % FSO

Creep: </= 0.01 % FSO in 20 minutes

Non Repeatability: </= 0.01 % FSO

Side Load Sensitivity: </= 0.01 % FSO

Zero Balance: </= 1.0 % FSO

Insulation Resistance: >1000 Megohms at 50VDC

Compensated Temperature Range: 10 to 45 Degree Celsius

Operating Temperature Range: 10 to 90 Degree Celsius

Excitation: 15 VDC Max

Deflection @RO-mm: 0.1

Safe Overload: 150% of Rated Capacity

Ultimate Overload: 300% of Rated Capacity.
