S type Load Cell

S type Load Cell

Best – BCS

We manufacture complete range of S Type Load Cell or S Beam Load Cell ranging from 500g to 20t.

S type load cell is used where tension or compression loads are to be monitored. Typically mounted within the ends of a rod, are used for general force measurement applications.

Regular “S” design and our new innovative design which can never be overloaded in compression or tension application is also available ex stock.

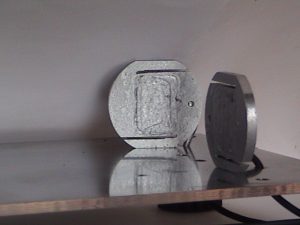

MINIATURE S-TYPT

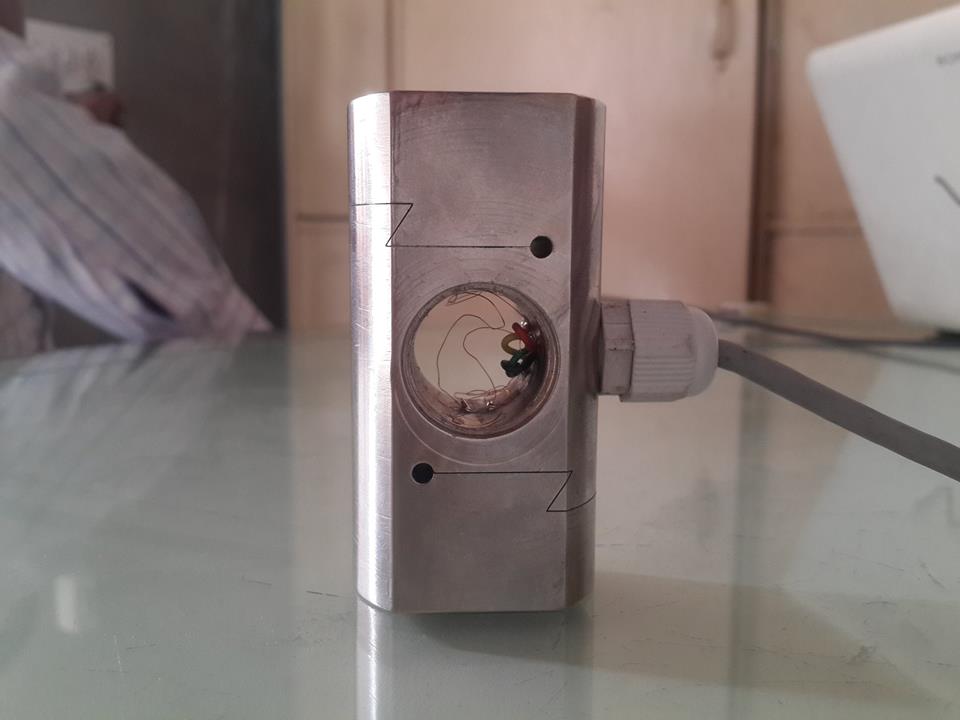

s type wirecut

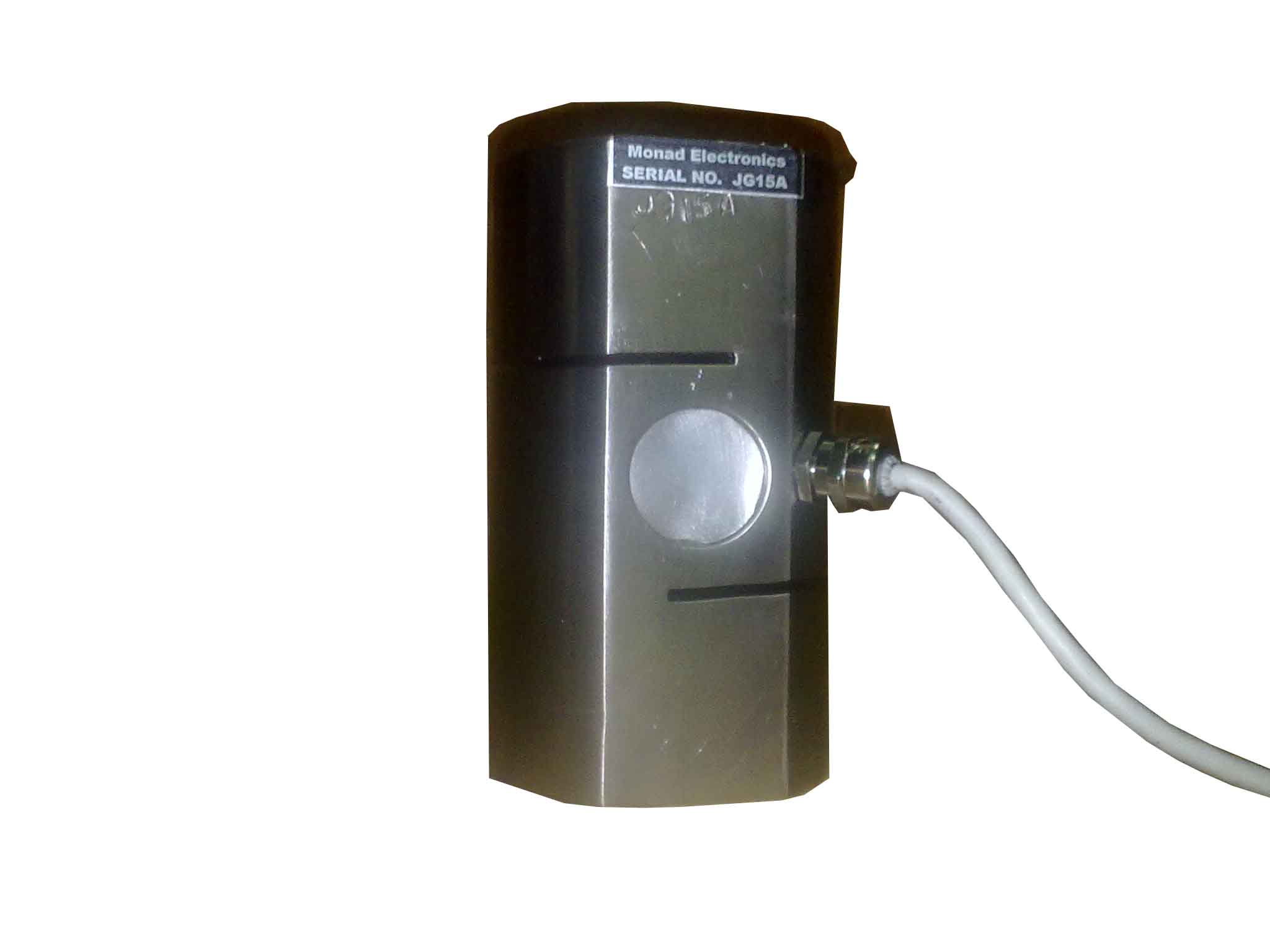

S-Type Load Cell

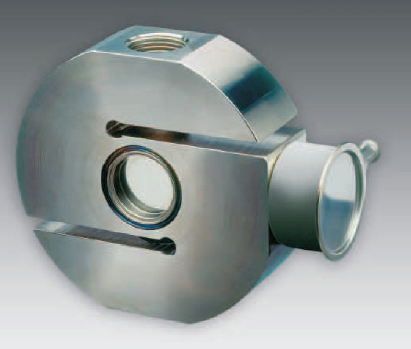

S type load cell 1

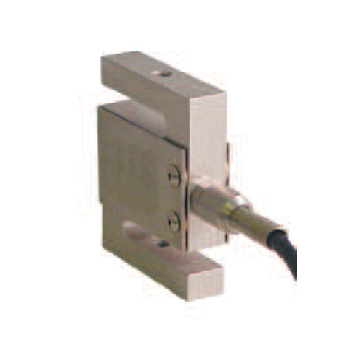

S type load cell 2

S type load cell dimensions

Technical Specifications are given below:

Capacities Available:

Grams: 500

Kg: 2,5,10,20,50,100,200,300,500,750

Tonnes: 1,1.5,2,3,5,10,15,20

Rated Output                                           mv/v                                    2

Calibration in                                          mv/v /%RO                         <+/- 0.05

Combined Error                                      % RO                                    <+/- 0.04

Creep (30Mins)                                      % RO                                    <+/- 0.06

Temperature effect on Sensitivity %/Degree Celsius              <+/- 0.02

Excitation Voltage                                   V DC/AC                              5-15

Zero Balance                                             % RO                                    <+/- 1.0

Insulation Resistance                             M Ohm                                 > 2000

Compensated Temp Range                  Degree Celsius                     15-45

Operating Temperature Range          Degree Celsius                     0-50

Safe load (Standard Type)                   % Rated Capacity                150%

Safe load (Wire Cut Design)               % Rated Capacity               >1000%

Material of construction                                                                        Alloy Steel/ SS

Environment Protection                                                                        IP64/IP67
