Weighing Scales with Wifi Ethernet Connectivity

Weighing Scales with Wifi Ethernet Connectivity

Make : GODSUN

Godsun LogoGodsun Logo Small

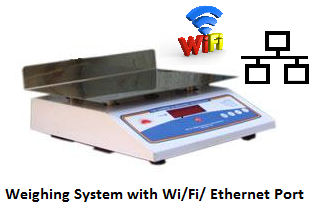

Weighing systems with Wifi ethernet connectivity

Weighing scales with wifi ethernet connectivity is another milestone achieved by the Weighing Solutions & Instrumentation. We are one of the very few manufacturers having the option of providing Wi-fi / Ethernet enabled weighing scales and other systems to its customer who want the weighing scales to be connected to the internet or the network. It is result of our continuous efforts to provide the latest and best to our existing as well as future customers and also the result of continuous efforts and hardwork of our Research and Development team.

Any of the Digital weighing scale or system (jewellery scales/ Tabletop weighing scales / Platform weighing scales/ Piece counting scales/ Price computing scales/ Check weighing scales and systems/ Hopper / Tank/ Silo Weighing systems/ RFID Weighing scales / Weigh bridges) or any other application can be provided with Wi-fi or Ethernet port and hence can be connected to the internet and network to enable the user to read the data or control the weighing scale / System from anywhere in the world.

These systems can be accessed from the anywhere in the world to control or to read the data. The data can also be directly logged onto the website.

Load cells with Wi-fi and ethernet connectivity are also available in multiple types and capacities for any application.

Applications:

  • Large Retails stores
  • Grocery stores
  • Warehouses
  • Godowns
  • Logistics firms
  • Courier companies
  • Laboratories
  • Mandi’s
  • Weighing automation

Internet Connected Weighing Systems:

Weighing scales with wifi ethernet connectivity can also be connected to the internet. You can see the weight data on your computer screen, on your android mobile / tab or you can receive the data on your computer application also while you are miles away from the system.

The weighing system will connect to the internet by using the Wi-Fi or Ethernet connection at the place of installation. It will then send the data to internet every 10 seconds. We can also supply the android app which can display the weight of a particular weighing system on your Android mobile/Tablet screen and will be updated every 10 seconds. So, no need to send mail or call back to factory to get the stock details. You can have the stock on your mobile / tab screen anytime anywhere.

Be it a internet enabled tank weighing system, internet enabled hopper weighing system, internet enabled silo weighing system, internet enabled online weighers and totalizers, or just a simple table top or platform type weighing scale can be supplied with this feature. Data of multiple weighing systems or scales can be displayed on one screen.

Technical Specifications

Network standard
wireless:IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
wired:IEEE 802.3, IEEE 802.3u
Wireless transmission rate
11n: maximum up to 150Mbps
11g: maximum up to 54Mbps
11b: maximum up to 11Mbps
Tracks number
1-14
Frequency range
2.4-2.4835G
Emission power
12-15DBM
Interface
1个10/100Mbps LAN/WAN multiplex interface, interface
Antenna
Antenna type
Onboard antenna / External Antenna
Functional Parameters
WIFI work mode
Client/AP/Router
WDS Function
Support WDS wireless bridge connection
Wireless security
Wireless MAC address filtering
Wireless security function switch
64/128/152 bit WEP encryption
WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
Network management
Remote Web management
Configuration file import and export
WEB software upgrade
Network
Maximum transmission rate
230400bps
TCP connection
Max connection number>20
UDP connection
Max connection number>20
Baud rate
50~230400bps
Other Parameters
Status indicator
Status indicator
Environmental standard
Operating temperature:-20-70℃
Operating humidity:10%-90%RH
Storage temperature:-40-80℃
Storage humidity:5%-90%RH
Additional properties
Frequency bandwidth optional:20MHz, 40MHz ,Auto

For demo video of WiFi scales, Visit: https://youtu.be/eZjxG_WH22I
