Network and Cloud Connected Scales

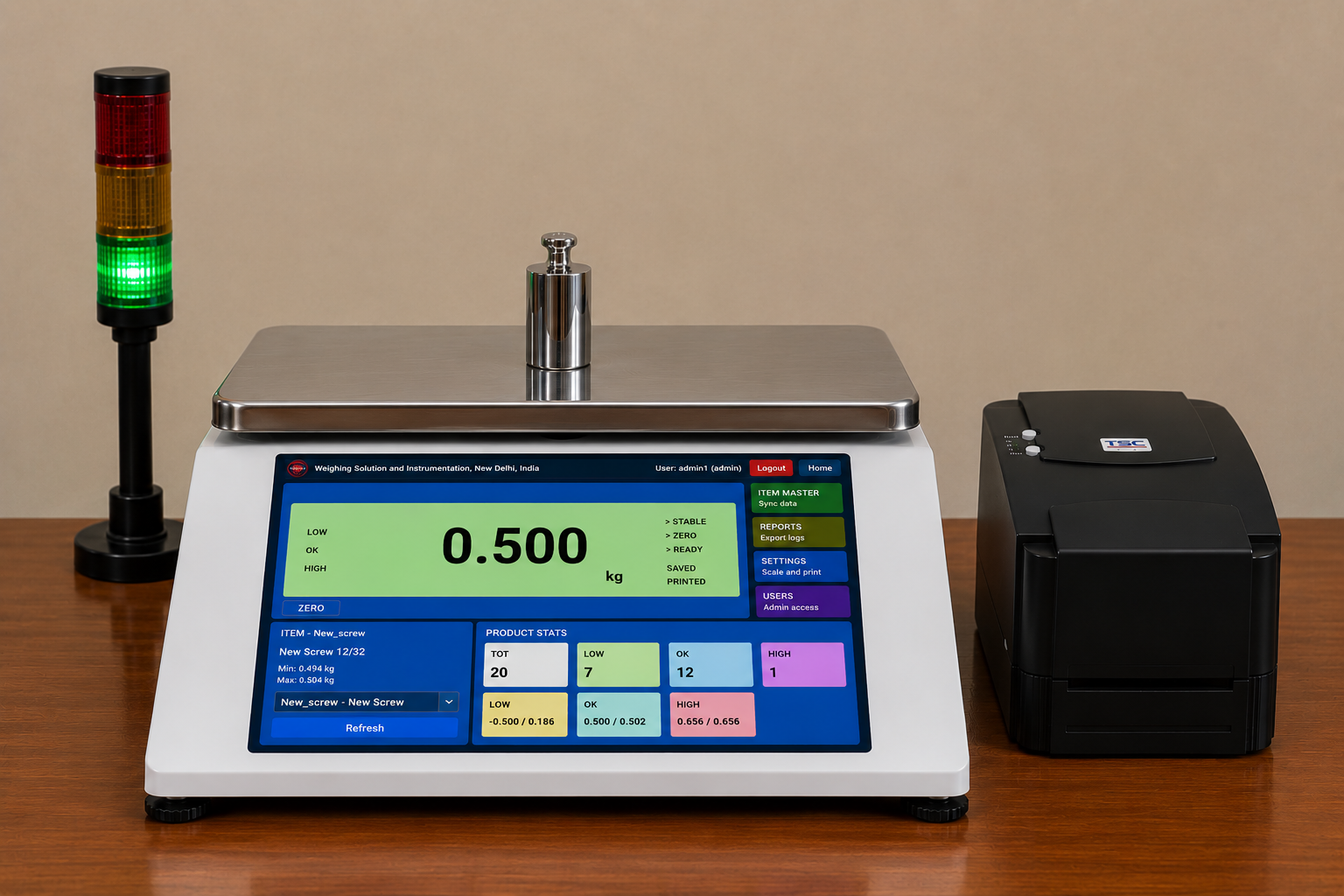

WSI TouchCheck
LAN or cloud connected touch screen check weighing system with LOW/OK/HIGH decisions, label printing, operator login, email reports, tower light output and central settings/report management.
Built for production, packing and QC check weighing
WSI TouchCheck combines a touch-screen scale interface, product-wise weighing limits, label printing and connected reporting in one integrated system. It can be deployed on a local area network with a Windows master PC, or as a cloud-connected system where settings, production data and reports are managed online.
Touch screen operationLarge operator-friendly weighing interface for production and QC teams.
LOW / OK / HIGH decisionsInstant product-wise check weighing using configured limits and tare settings.
Label printingManual or automatic label printing with configurable PRN label formats.
LAN master PC modeCreate items, users, label files, limits and reports on a local master PC, then sync to connected scales.
Cloud connected modeManage settings, production data and reports through a cloud-connected deployment for remote visibility.
Operator loginRole-based access and user-wise traceability for production records.
Reports and emailItem-wise, user-wise and date-wise reports with local or cloud access, export and email report options.
Tower light output3-color tower light and buzzer output for visible floor-level decisions.
Multi-scale syncSend data to one, multiple selected, or all connected scales from the LAN master PC or cloud management system.
Customization availableCapacity, platform size, label format and reporting workflow can be configured.
LOWBelow product limit
OKWithin accepted range
HIGHAbove product limit
Scale console, LAN master PC and cloud reporting
The scale console handles live weighing, LOW/OK/HIGH decisions and shop-floor operation. In LAN mode, Windows PC master software manages item masters, users, label files, reports and synchronization for one or multiple connected scales. In cloud mode, authorized users can manage settings, view reports and monitor weighing data from the cloud across sites.
Local area network deploymentUse a Windows master PC inside the plant to manage products, users, limits, labels, data transfer and reports for one or multiple scales.
Cloud connected deploymentUse cloud connectivity when settings, data, reports and monitoring need to be available beyond the local factory network.
Centralized settingsRecipe/item settings, users, weighing limits, label files and reporting preferences can be controlled centrally instead of setting every scale separately.
Touch screen home dashboard
Live check weighing screen
PC master software
Reports and statisticsFour connected workflows in one system
Scale console features
- Touch-screen weighing with large live display
- Product-wise tare, lower limit and upper limit
- Stable or continuous decision mode
- Manual or automatic label printing
- Tower light, buzzer and ZERO output control
LAN master PC mode
- Create and manage item master, user master and label files on the master PC
- Configure connected scale list and remote settings on the local network
- Send item, user, label and configuration data to scales
- Push data to one, selected multiple, or all connected scales
Cloud management and reports
- Cloud-connected option for centralized settings and data management
- Item-wise, user-wise and date-wise reports from connected scale data
- Remote access to production reports for managers and supervisors
- Email reports and export options as per deployment requirement
Typical applications
- Packing lines and dispatch verification
- QC inspection and receiving inspection
- Component, fastener, food and pharma packing
- Multi-station networked weighing systems
| Parameter | Specification |
|---|---|
| Display | 7-inch touch screen standard, larger displays optional(10.1-inch touch, 15.6-inch touch) |
| Power | 220VAC/50HZ with optional Rechargeable Battery Backup |
| Load cell | Very high precision Load cell |
| ADC | 24 bit sigma/delta adc |
| Overload protection | 150% of the rated capacity |
| Ultimate overload | 300% of rated capacity |
| Controller | Quad-core 64bit Processor |
| Memory | 4 or 8 gb RAM |
| Decision modes | Stable and continuous LOW / OK / HIGH decision |
| Connectivity | LAN master PC connectivity or cloud connected deployment for settings, data, reports and monitoring |
| Printer interface | Direct thermal label printer support |
| Outputs | 3-color tower light, buzzer and Optional Potential free relay outputs |
| Reports | Item-wise, user-wise, date-wise and combined reports with local export, email and cloud access options |
| Data sync | Item master, user master, label files and configuration sync through LAN master PC or cloud management |
| Customization | Capacity, platform size, label format and reporting workflow |
Need a custom TouchCheck system?
Contact WSI for capacity, platform size, label format, reporting workflow and integration options.
