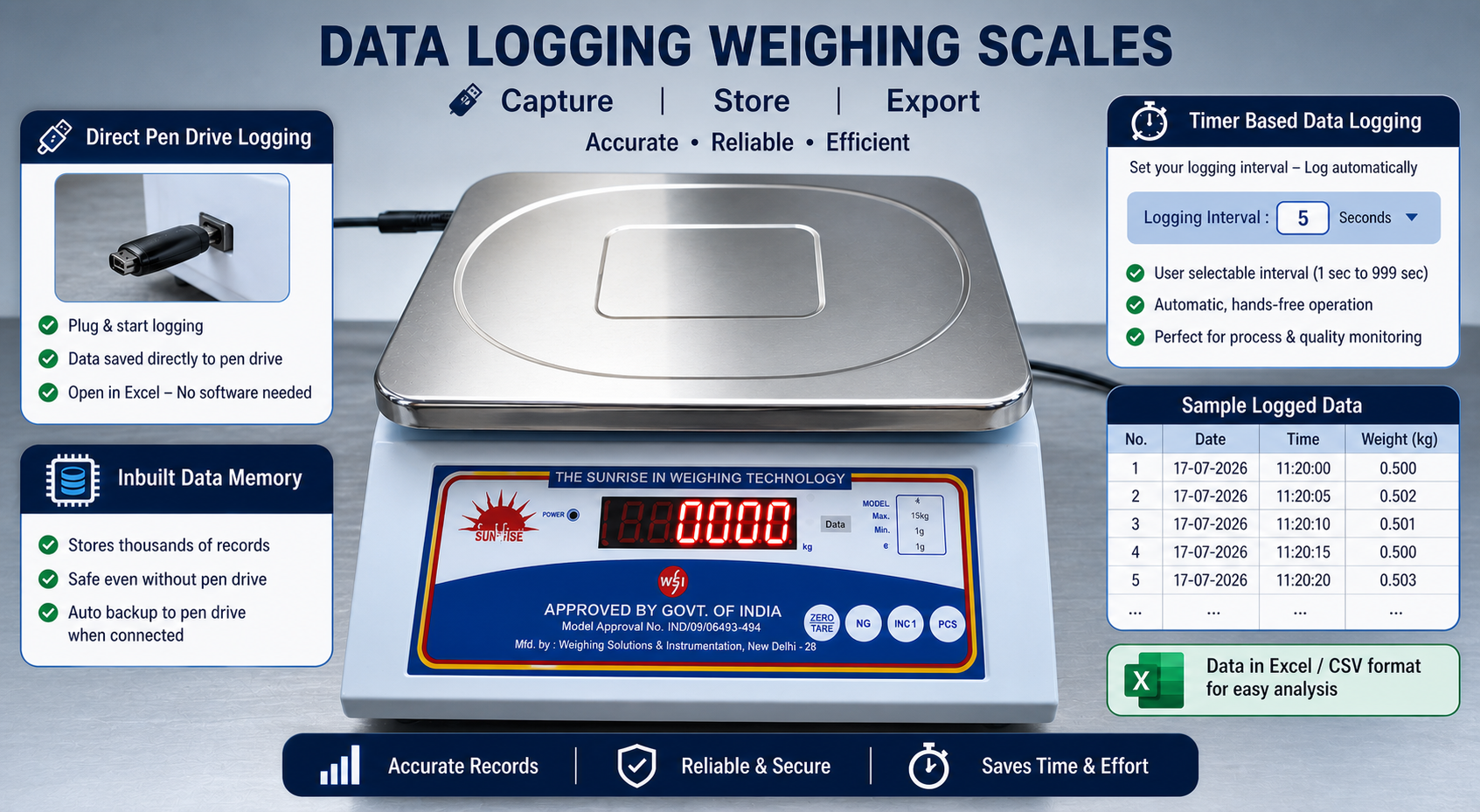

Reliable weight records without manual entry
WSI data logging weighing scales are built for users who need a dependable record of weight readings along with date, time, product status and exportable data. The scale can capture stable weight readings automatically, store records inside the scale, write directly to a pen drive, or send data through connected software depending on the selected model.
Pen drive logging
Weight data is saved directly to a USB pen drive in Excel / CSV compatible format. No PC software is required for basic record collection.
Inbuilt memory
Models can store thousands of records internally. Backup can be taken later through USB, PC connection, Bluetooth or Wi-Fi depending on configuration.
Timer based logging
User selectable interval logging supports process monitoring, quality checks and long duration weight trend capture.
Logging modes available
Stable weight capture
- Logs only after the reading becomes stable
- Avoids false records during loading and unloading
- Useful for packing, dispatch and QC weighing
Condition based logging
- Log above a set weight
- Log below a set weight
- Log within or outside accepted range
- LOW / RANGE / HIGH marking can be configured
Interval based logging
- User selectable interval
- Automatic hands-free operation
- Suitable for process and batch monitoring
Wi-Fi and Google Sheets data logging scales
For customers who want online records, WSI can provide Wi-Fi enabled data logging weighing scales. Depending on the requirement, the scale can send records to PC software, local network systems or Google Sheets through a configured data logging workflow.
Wi-Fi logging
Useful where operators should not remove pen drives or where records must be collected centrally.
Google Sheets logging
Weight, date and time records can be pushed to a Google Sheet for remote access, audit review and shared production visibility.
Custom software
For higher control, reports, operator login or ERP integration, WSI can provide custom data logging software.
Indicative price for basic tabletop model
Indicative starting price for a basic tabletop direct pen drive data logging weighing scale is Rs. 8,500/- + GST.
Basic indicative model includes
- Tabletop weighing scale
- Capacity range: 6kg/0.5g to 30kg/2g
- Single display
- Direct pen drive data logging
- Auto or manual logging mode
- Excel / CSV compatible data file
Final price may vary based on capacity, readability, platform size, enclosure, calibration, display type, memory, Wi-Fi, Google Sheets logging, software integration and customization.
Typical applications
Production and packing
Maintain automatic records of packed weight, batch weight, filling weight or dispatch weight.
Quality control
Capture date-wise and time-wise weight records for inspection, sampling and audit documentation.
Process monitoring
Use interval logging to track weight variation in tanks, hoppers, silos, platforms and industrial systems.
| Feature | Options |
|---|---|
| Scale type | Tabletop scale, platform scale and customized weighing system |
| Capacity | XD series from 300g to 30 kg, XR/platform range up to heavy industrial capacities |
| Storage | USB pen drive, inbuilt memory, PC software or Wi-Fi/network destination |
| File format | Excel compatible CSV / XLS style records |
| Record fields | Date, time, weight, status marking and customized fields as required |
| Customization | Capacity, platform size, logging interval, print/export format, Google Sheets workflow and software integration |
